Why there is no output?_copy20241023

1. The battery string output cable is not connected；2. the power of this cell pack module was run out.

Why the charger power indicator is off?_copy20241023

The charger mains input plug is not inserted correctly.

Why the battery pack cannot be charged?_copy20241023

1. The charger output plug is loose. 2. The energy storage battery pack is fully charged.

Which method is used for the SOC(State of Charge) calculation?_copy20241023

Ususally there are two way for us to calculate the State of Charge. 1.Coulomb Counting: Coulomb counting measures the charge flowing into and out of the battery. At low currents, the voltage drops across the sense resistor used for current measurement becomes very small, making it difficult to accurately measure the current. This can lead to significant errors in the fuel gauge readings, especially when the 48 volt lifepo4 battery is nearing depletion. 2.Voltage-based methods: Voltage-based methods estimate the state of charge (SOC) by monitoring the battery voltage. However, the relationship between voltage and SOC is non-linear and varies depending on factors like temperature, discharge rate, and battery aging. At low currents, the voltage changes become smaller and less predictable, further reducing the accuracy of the fuel gauge.

What is 48 Volt LiFePO4 battery pack self discharge rate?_copy20241023

It depends on the Soc percentage. If it is at 100%, in one month, the self discharge rate is 3%, and 40% SOC is 2%; After one month disuse, there is still SOC of 97%.

- English
- français
- Deutsch
- Español

FPR-ESS-282kWh/289kWh

Battery Pack

Name: FPR-ESS-282kWh/289kWh
Brand: FPR New Energy Technology Co., Inc.
Price: 100 USD

The FPR-ESS-282kWh/289kWh, featuring high energy density and advanced lithium-ion technology, ensures longer life cycles and superior efficiency. Its modular design allows for easy scalability, making it suitable for various applications. Equipped with safety mechanisms, including multi-level protection and active cooling systems, the FPR-ESS-282kWh/289kWh provides reliable operation even under demanding conditions.

Get a Quote PDF Download

Highlights of FPR-ESS-282kWh/289kWh

Safe & Reliable

Multi-level system prevention and protection from the cell to the system.
Compliance with global system safety standards.

Flexible & Scalable

The BESS for sale offers a high energy density solution that is scalable to meet your project needs.
Equipped with an intelligent liquid cooling system, the FPR-ESS-282kWh/289kWh operates efficiently across a wide ambient temperature range.

Smart

Health status detection
Intelligent thermal management
Multi-mode operation

Cost saving

The battery cell module pack is a highly integrated plug-and-play solution, ensuring easy transportation, installation, and O&M.
Each pre-assembled module of our FPR-ESS-282kWh/289kWh is factory-tested and delivered ready for on-site installation.

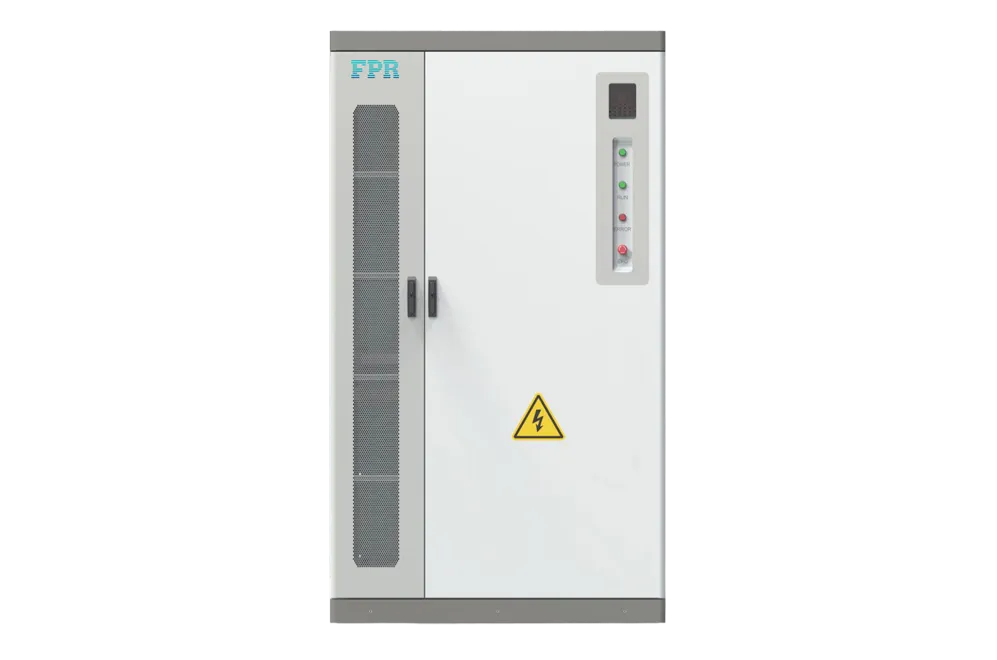

Gallery of Battery Pack FPR-ESS-282kWh/289kWh

Further Informatin on Battery Module Pack FPR-ESS-282kWh/289kWh

Specification

FPR-ESS-282kWh/289kWh
System Model	FPR-ESS-135kW/282kWh-0.48kV	FPR-ESS-135kW/289kWh-0.48kV	FPR-ESS-75kW/289kWh- 0.48kV
Battery Parameters
Battery CellType	LFP/306Ah	LFP/314Ah	LFP/314Ah
Battery Configuration	1P288S	1P288S	1P288S
Battery Capacity at DC Side(BOL)	282kWh	289kWh	289kWh
Maximum C Rate/ Nominal Discharge Duration	0.5C/2 Hours	0.5C/2 Hours	0.26C/3.85 Hours
Battery Rated Voltage	921V
Battery Voltage Range	806V~1,000V
Battery Cooling Method	Liquid Cooling
AC Parameters
Rated Power	135kW	135kW	75kW
Rated Voltage	480V±10%
Rated Frequency	60Hz
Max.THD of Current	<3%(at nominal power)
General Parameters
Topology	Transformerless
Size(WHD)	1,3502,4001,350mm(4.437.874.43 ft)
Weight	3,000kg
IP Level	IP54
Anti-Corrosion	C4 Standard,C5 Optiona
Fire Protection System	Aerosol.Smoke,and Temperature Detector.NFPA 68-Compliant Deflagration PanelNFPA 69-Compliant Ventilation System with Combustible Gas Detection(Optional).
Operating Temperature	-30℃~50°℃(>45℃ derating)/-4°F~122°F(>113°F derating)
Max.Operating Altitude	3,000m
Communication Protocol	Modbus TCP/IP
Communication Interface	RS485/Ethernet
Complicance Standard	UL 1741-SB,UL 1973:2022,UL9540A,UL9540:2020,IEEE1547:2018,UN38.3, FCC part15B
*Specifications are subject to change without prior notice.
